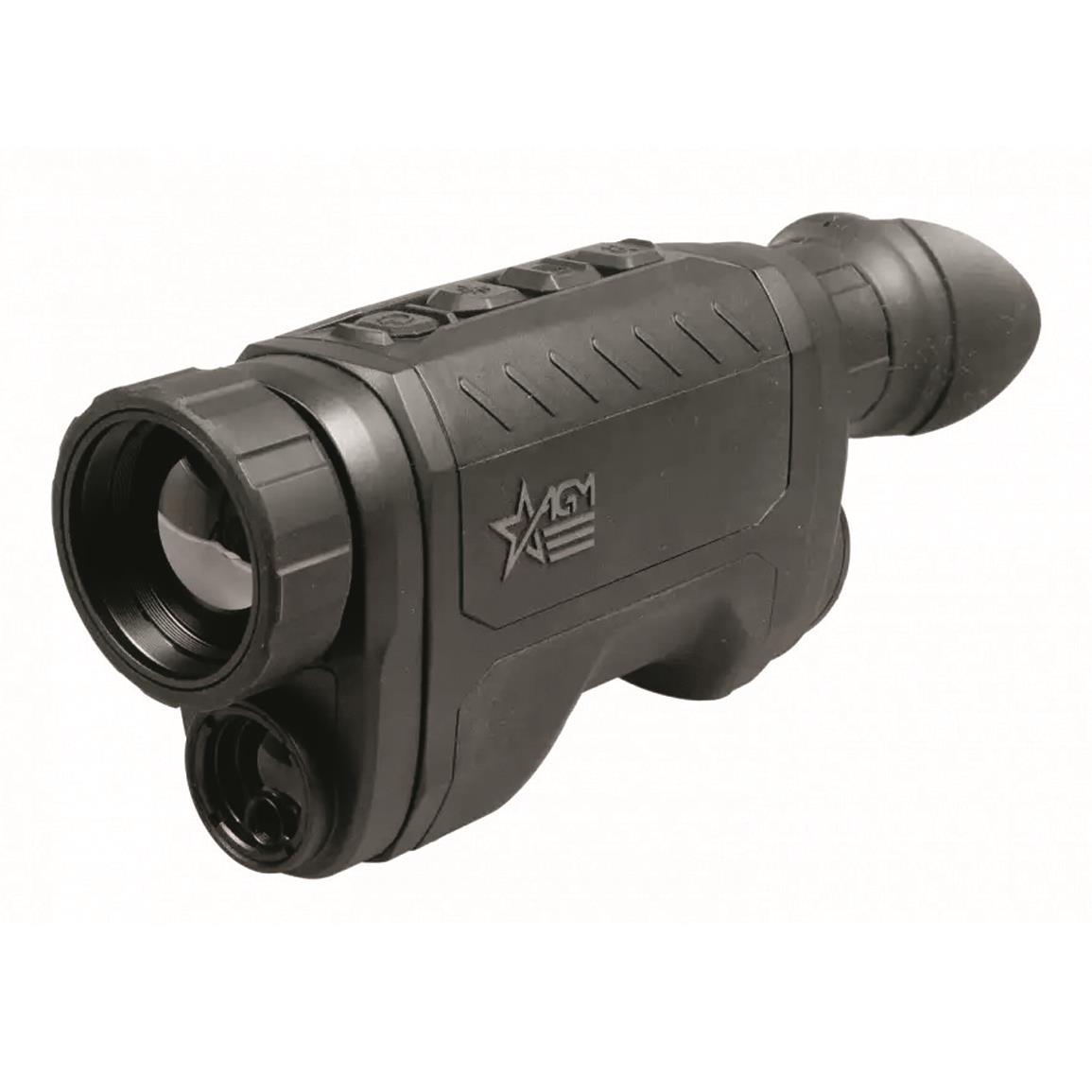

AGM ReachIR LRF 35-640 Thermal Imaging Monocular with Rangefinder

AGM GLOBAL VISION

AGM ReachIR LRF 35-640 Thermal Imaging Monocular with Rangefinder

AGM GLOBAL VISION logo
The ReachIR is new premium handheld thermal monocular. All models come equipped with 12-micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire line. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. New optimized image processing algorithms provide highly optimized images and remarkable details. The ReachIR's built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture.
  • 640x512 12μm high-sensitivity infrared detector
  • Sub-20mK thermal sensitivity, 50Hz refresh
  • 3-24x magnification
  • High-resolution 1024x768 OLED 0.39" display
  • Integrated rangefinder with 1,000m range, accurate to +/-1m
  • 100% wateproof, IP67 rated
  • White hot, black hot, red hot and fusion color palettes
  • Up to 4 hrs. runtime on (1) 18650 rechargeable battery
  • 64GB built-in storage for photo and video

Key Specifications

  • Item Number: 745203
  • Magnification: 2-16x
  • Digital Zoom: 1x, 2x, 4x and 8x
  • Sensor: 640x512, 50Hz
  • Detector: Vanadium oxide uncooled microbolometer
  • Detection Range: 1,800m
  • Micro Display: 1024x768 pixel, 0.39"
  • Lens (Focal Length): 35mm, F1.0
  • Field of View: 12.5x10°
  • Diopter Adjustment: -5 to +3
  • Working Temperature: -22° to +131°F
  • Battery Life: Up to 4 hrs.
  • Battery Type: (1) 18650
  • Overall Size: 7.28x2.09x3.46"
  • Overall Weight: 14 oz.
  • Mfg. Number: REAC35-640-LRF
